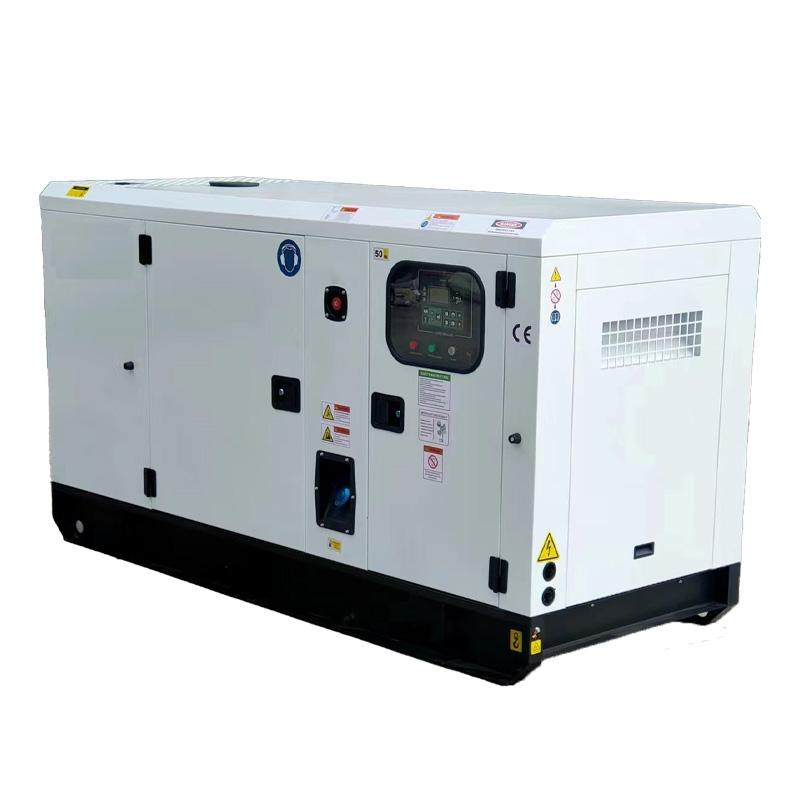

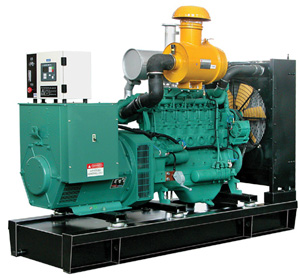

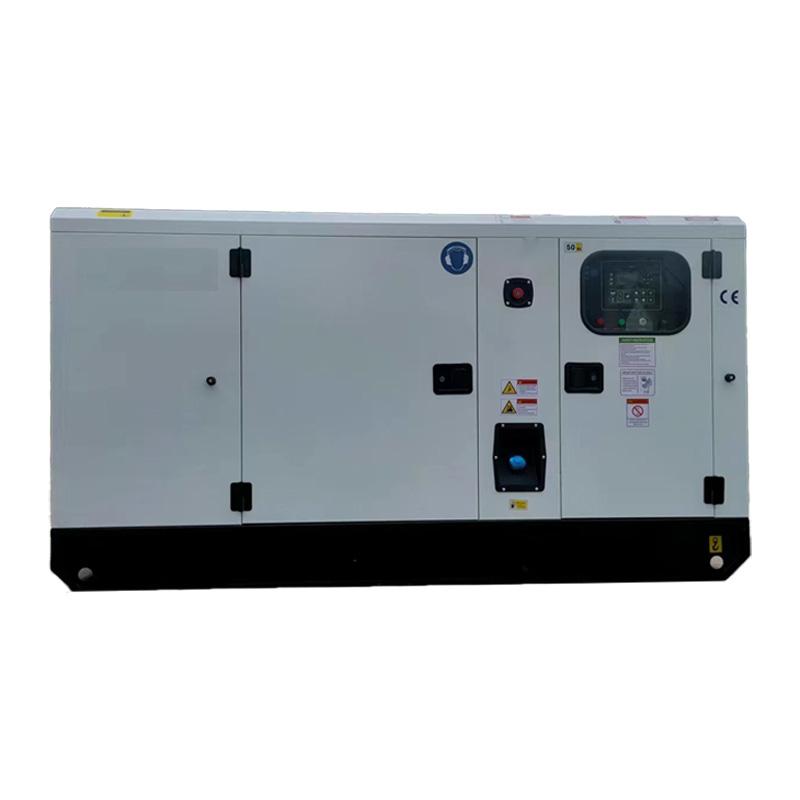

GP Power Yangdong Diesel Generator Set

Short Description:

YANGDONG diesel generator set power range : 50Hz: from 7Kva up to 66Kva ; 60Hz: from 9Kva up to 77Kva;


Product Detail

50Hz

60Hz

Product Tags

Specification

Yangdong Co.,Ltd  is a subsidiary of  YTO Group.
Yangdong Co.,Ltd  with  "integrity, pragmatic, innovative" concept to provide  high-tech, high-performance,  high-quality products and first  class service for the purpose,  adhere to scientific and technological innovation, to  become experts in power  integrated solution. The company increased R & D efforts, relying on YTO Group National Technical Center's technical superiority and cooperate with the Southwest Research Institute, Austria AVL, FEV, Germany FEV and Japan YAMAHA, many of the world-renowned agencies, using electronically controlled fuel system EGR system, DPF system, and other international scientific and technological achievements, for a full range of technological transformation, have successfully completed to make diesel product research and development meet Euro.

YANGDONG DIESEL GENERATOR SET  (2)
YANGDONG DIESEL GENERATOR SET  (3)
YANGDONG DIESEL GENERATOR SET  (1)
4
3

Ⅲ, Ⅳ emission standard, and have complete independent intellectual property rights. Company is currently working on product development which can meet  EuroⅤ emission standards.
In 1984, we successfully developed  first  480 vehicle diesel engine, after 30 years of development, has become the largest multi-cylinder diesel production base of small, multi-cylinder diesel engine, with an annual output 300 000 capacity diesel engine ,we have 18 kinds of basic types of multi-cylinder diesel engine, bore from 80-110mm, displacement from 1.3-4.5L, power cover 10-105kW. Products are suitable for passenger cars, commercial vehicles, low-speed trucks, tractors, generator set,fire fighting pump, water pump,combines, construction machinery, marine units, air conditioning units and other supporting bus.
Yangdong Co.,Ltd  has passed ISO9001 international quality system certification and ISO/TS16949 quality system certification, small bore multi-cylinder diesel engine was the national product quality inspection certificates, Yangdong diesel engine received 10 consecutive years, "Jiangsu Famous Brand", "Trustworthy Product of Jiangsu Province" and so on. some products certified by the U.S. EPA, the European Union E-mark and CE certification.

Features

*Comfortable : Lower vibration and noise.
*Reliability: The cooling system of the engine is improved to reduce heat load.
*Environmental protection
*Low fuel consumption
Technology:
Joint design is done by China YTO group corp.and worldwide famous R&D centers.The advanced diesel engine technologies at home and aboard are integrated.Based on CAD / UG 3D technologies and CAE analysis by using all new stiffness.


  • Previous:
  • Next:

  • Genset Model Standby Power Prime Power Engine Model No.of Cylinder Displacement Rated Fuel Consumption @100% load Lub Oil  Capacity
    kVA kW kVA kW L L/h L
    GPY10 10 8 9 7 YD380D 3 1.357 3.1 5.5
    GPY11 11 9 10 8 YD385D 3 1.532 3.3 5.5
    GPY14 14 11 13 10 YD480D 4 1.809 4.2 6.5
    GPY15 15 12 14 11 YD4KD(YD485D) 4 2.043 4.4 6.5
    GPY17 17 13 15 12 YND485D 4 2.156 5 6.5
    GPY21 21 17 19 15 YND490D 4 2.417 5.9 6.5
    GPY22 22 18 20 16 YSD490D 4 2.54 5.9 7.5
    GPY25 25 20 23 18 Y490D-P 4 2.67 7 7.5
    GPY28 28 22 25 20 Y495D 4 2.997 7.7 7.5
    GPY30 30 24 28 22 Y4100D 4 3.707 8.5 8.2
    GPY33 33 26 30 24 Y4102D 4 3.875 9.2 8.2
    GPY40 40 32 36 29 Y4105D 4 4.1 10.5 8.5
    GPY41 41 33 38 30 Y4102ZD 4 3.875 11 8.5
    GPY50 50 40 45 36 Y4102ZLD 4 3.875 12.9 8.5
    GPY55 55 44 50 40 Y4105ZLD 4 4.1 14.4 8.5
    GPY66 66 53 60 48 YD4EZLD 4 4.1 16.4 9
    Genset Model Standby Power Prime Power Engine Model No.of Cylinder Displacement Rated Fuel Consumption @100% load
    kVA kW kVA kW L L/h
    GPY12 12 10 11 9 YD380D 3 1.375 3.7
    GPY14 14 11 13 10 YD385D 3 1.532 3.9
    GPY17 17 13 15 12 YD480D 4 1.809 4.8
    GPY21 21 17 19 15 YD4KD(YD485D) 4 2.043 5.3
    GPY22 22 18 20 16 YND485D 4 2.156 5.9
    GPY25 25 40 23 18 YND490D 4 2.417 7
    GPY26 26 21 24 19 YSD490D 4 2.54 7
    GPY30 30 24 28 22 Y490D-P 4 2.67 7.8
    GPY33 33 26 30 24 Y495D 4 2.997 8.6
    GPY34 34 28 31 25 Y4100D 4 3.707 9.3
    GPY41 41 33 38 30 Y4102D 4 3.875 10.9
    GPY47 47 37 43 34 Y4105D 4 4.1 12.4
    GPY50 50 40 45 36 Y4102ZD 4 3.875 13.1
    GPY55 55 44 50 40 Y4102ZLD 4 3.875 14.2
    GPY62 62 50 56 45 Y4105ZLD 4 4.1 15.7
    GPY77 77 62 70 56 YD4EZLD 4 4.1 17.6
