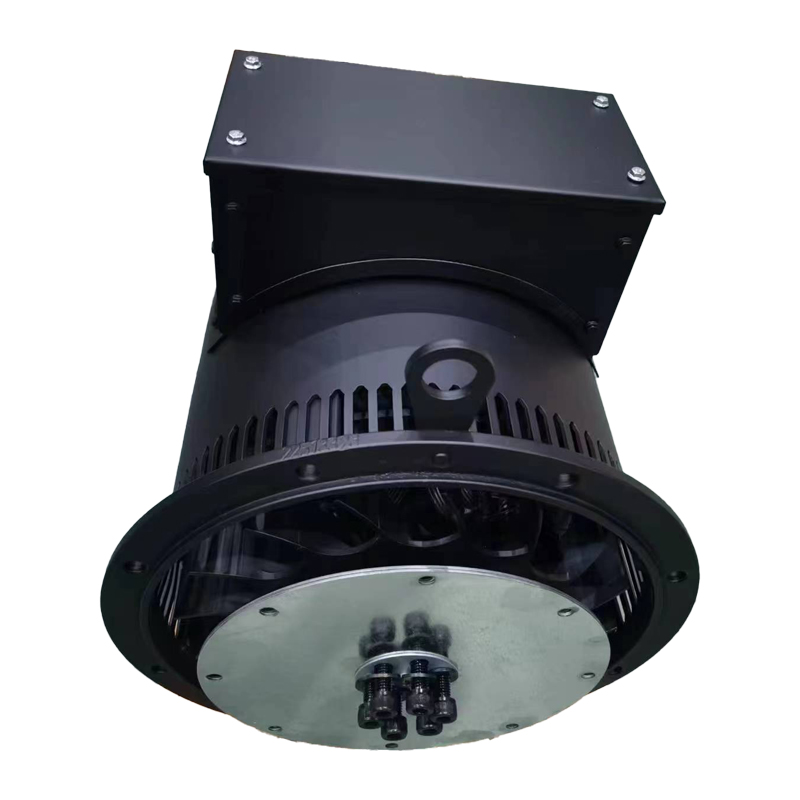

Gpc Series Compact Brushless Ac Synchronous Alternator

Short Description:

The compact series alternator has the characteristics of a short and coarse structure, which can effectively improve the rotational inertia of the rotor. The dynamic performance of the alternator is good, and the short and coarse structure is conducive to heat dissipation, reducing the temperature rise of the stator and rotor, and improving the efficiency of the alternator;

Send email to us

Product Detail

Product Tags

Specification

GPC series compact alternator power range :

50Hz: 5kVA up to 250kVA ; 60hz: 6kva up to 240kVA

This series of products is a special alternator product developed by our company based on years of experience in manufacturing and designing alternators, combined with the design and manufacturing technology of advanced brushless alternator series at home and abroad. On the premise of ensuring the performance and quality of the product, design solutions tailored to the special requirements of customers and meet their personalized needs. This series of alternators has advantage of small size, light weight, exquisite appearance, high reliability, and the electrical performance meets the international advanced level.

MAIN CHARACTERISTICS ：

• The compact series alternator has the characteristics of a short and coarse structure, which can effectively improve the rotational inertia of the rotor. The dynamic performance of the alternator is good, and the short and coarse structure is conducive to heat dissipation, reducing the temperature rise of the stator and rotor, and improving the efficiency of the alternator;

• High efficiency winding design, low heat generation, low temperature rise, and high energy efficiency of the alternator;

• Novel design, solid and reliable overall;

• Equipped as standard with KR620 or R120 automatic voltage regulator, the alternator has excellent dynamic performance, and the starting capacity of the alternator is increased by more than 50% compared to ordinary brushless alternators.

GPC SERIES COMPACT BRUSHLESS AC SYNCHRONOUS ALTERNATOR (3)

GPC SERIES COMPACT BRUSHLESS AC SYNCHRONOUS ALTERNATOR (2)

GPC SERIES COMPACT BRUSHLESS AC SYNCHRONOUS ALTERNATOR (1)

Benefits & Features

GPCA Series product selection table
1800rpm/min/60Hz/460-480V
Type	Rated Power Continued 40 ℃ 125k		Standby 40 ℃ 150k		Standby 27℃ 163k		Weight Single-Bearing
	kW	kVA	kW	kVA	kW	kVA	kg
GPCA 164A	6	7.5	6.4	8	6.6	8.3	80
GPCA 164B	7	9	7.6	9.5	8	10	85
GPCA 164C	10	12	10.2	12.7	11	13	90
GPCA 164D	12	15	12.7	15.9	13	17	95
GPCA 164E	14	18	15.3	19.1	16	20	105
GPCA 164F	18	22.5	19.1	23.9	20	25	112
GPCA 204C	19	24	20.4	25.4	21.1	26.4	113
GPCA 204D	24	30	25.4	31.8	26.4	33	122
GPCA 204E	30	37.5	31.8	39.8	33	41.3	138
GPCA 204F	45	56.3	38.2	47.7	39.6	49.5	150
GPCA 204FM	48	60	50.9	63.6	52.8	66	168
GPCA 204GS	54	67.5	57.2	71.6	59.4	74.3	186
GPCA 204G	58	72	61.1	76.3	63.4	79.2	194
GPCA 254A	48	60	50.9	63.6	52.8	66	206
GPCA 254B	54	67.5	57.2	71.6	59.4	74.3	217
GPCA 254C	60	75	63.6	79.5	66	82.5	232
GPCA 254D	66	82.5	70	87.5	72.6	90.8	243
GPCA 254E	72	90	76.3	95.4	79.2	99	258
GPCA 254F	77	96	81.4	101.8	84.5	105.6	265
GPCA274S1	77	96	81.4	101.8	84.5	105.6	258
GPCA274S2	84	105	89	111.3	92.4	115.5	265
GPCA274M1	90	112.5	95.4	119.3	99	123.8	279
GPCA274M2	102	127.5	108.1	135.2	112.2	140.3	300
GPCA274L1	114	142.5	120.8	151.1	125.4	156.8	331
GPCA274L2	120	150	127.2	159	132	165	352
GPCA274LM	144	180	152.6	190.8	158.4	198	404
GPCA314M1	144	180	152.6	190.8	158	198	538
GPCA314M2	156	195	165.4	206.7	171.6	214.5	558
GPCA314L1	168	210	178.1	222.6	184.8	231	578
GPCA314L2	180	225	190.8	238.5	198	247.5	610
GPCA314L3	192	240	203.5	254.4	211.2	264	625
GPCA314LM	216	270	229	286.2	237.6	297	658
GPCA354M1	204	255	216.2	270.3	224.4	280.5	695
GPCA354M2	216	270	229	286.2	237.6	297	721
GPCA354L1	228	285	241.7	302.1	250.8	313.5	756
GPCA354L2	240	300	254.4	318	264	330	780
