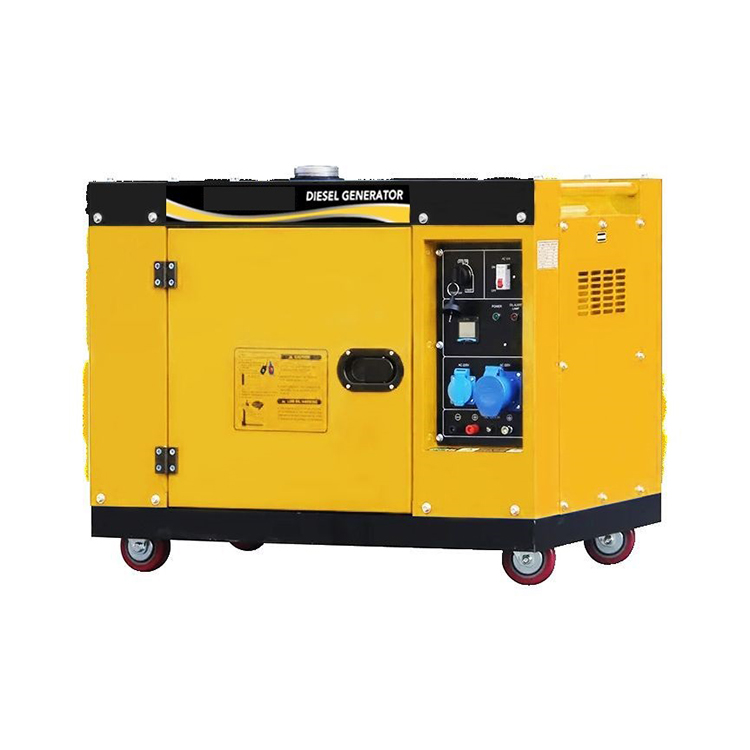

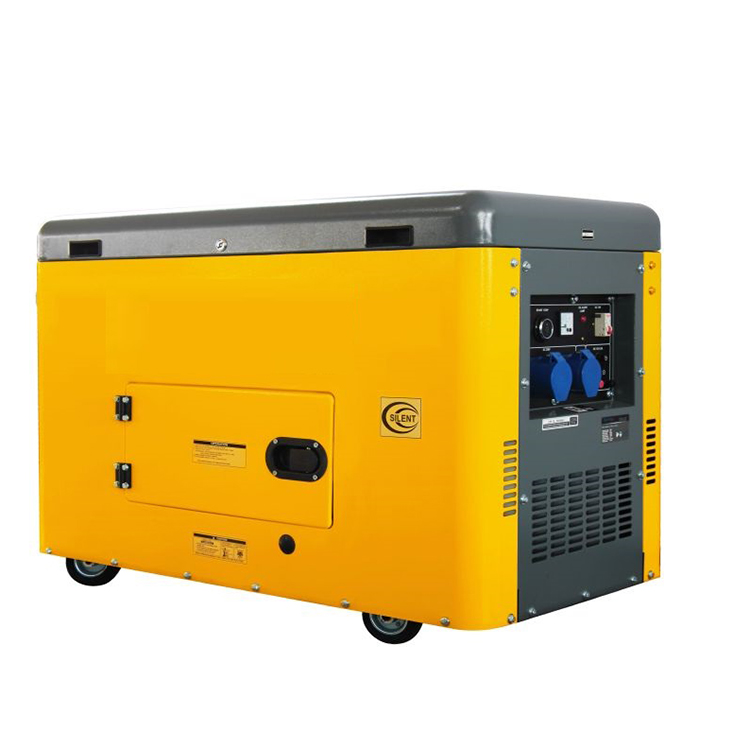

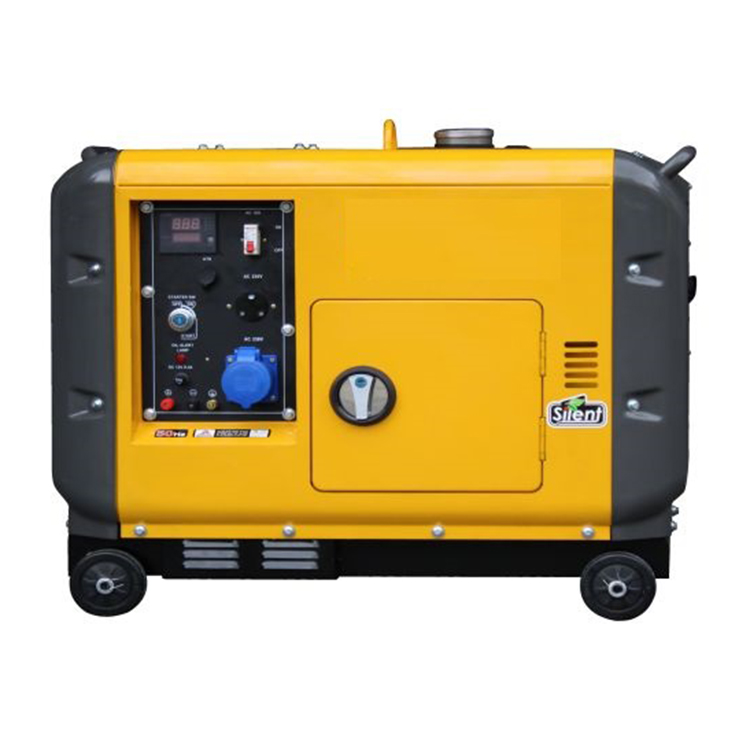

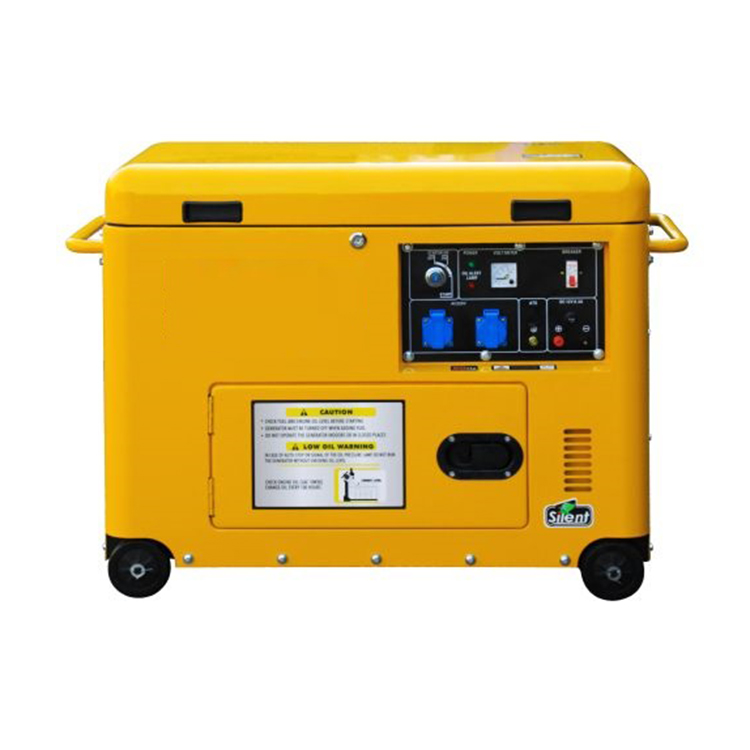

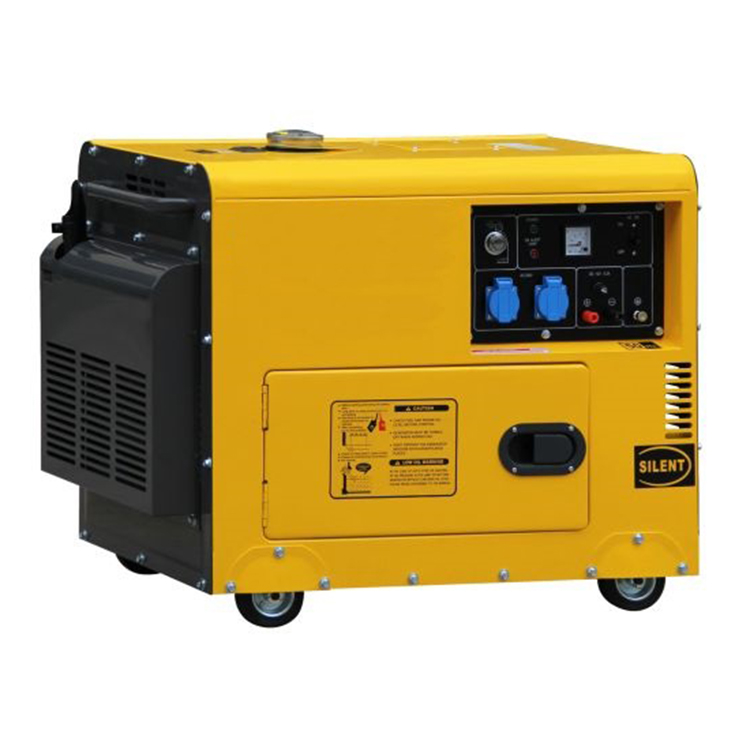

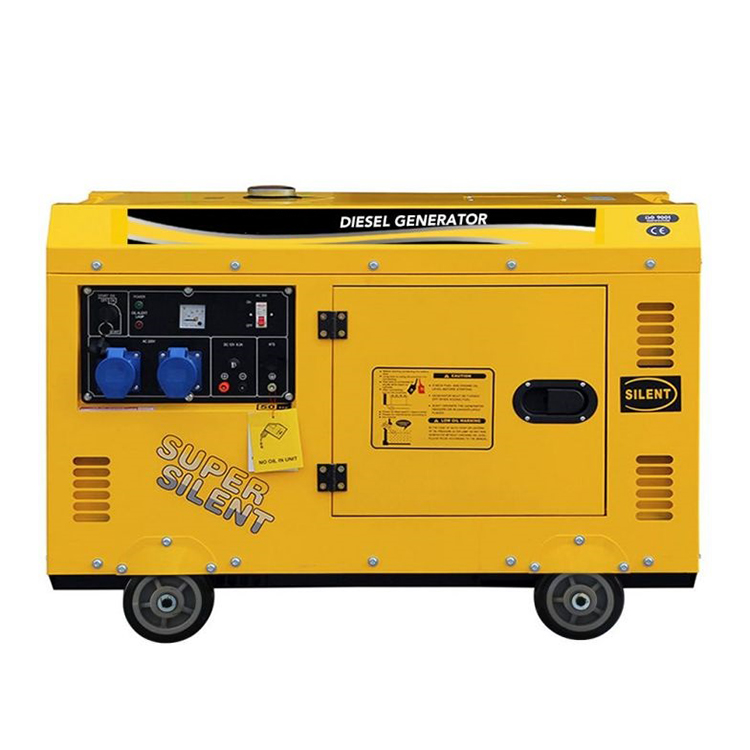

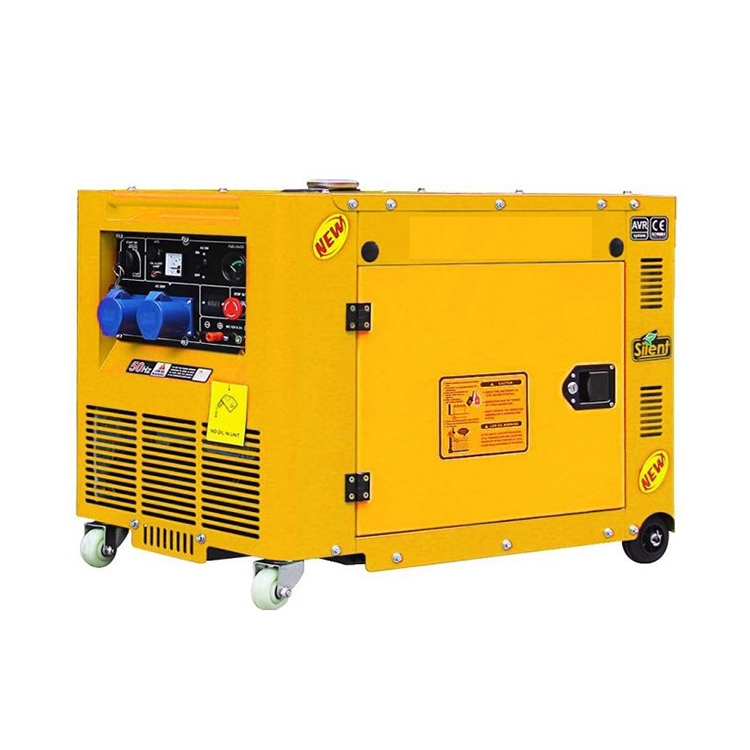

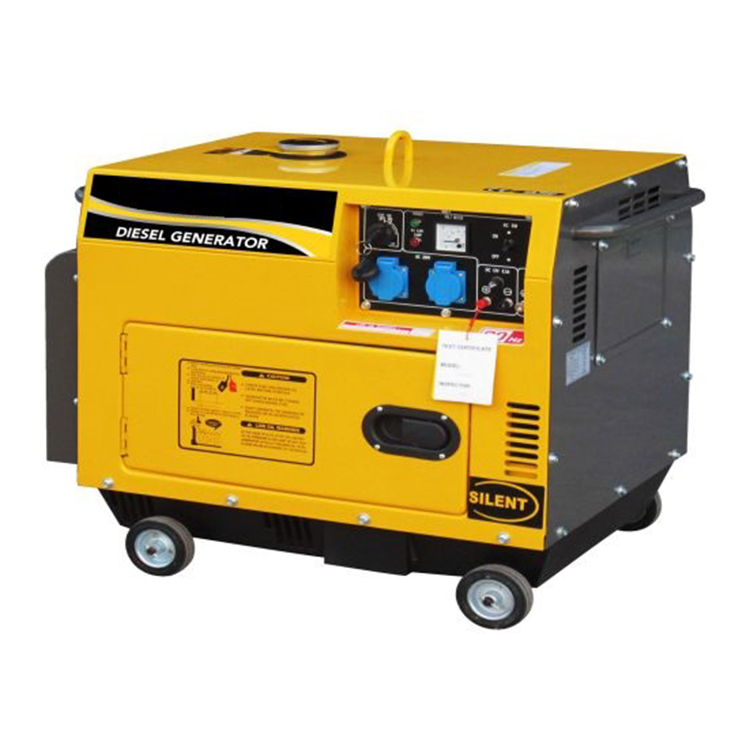

Air cooled silent type diesel generator
Detailed Information
The air-cooled silent type generator adopts advanced fan and heat sink design, and the forced convection air-cooled heat dissipation technology effectively reduces the working temperature of the generator set and improves the heat dissipation efficiency. At the same time, the quiet material can absorb and isolate noise, thereby reducing the noise generated by the generator set.
Electric Features
The unit adopts a modern control system, which can realize functions such as automatic start and stop, speed regulation and protection. At the same time, it is also equipped with reliable protection devices, including overload protection, under voltage protection, over voltage protection, etc., to ensure the safety and reliability of the generator set during operation.
The air-cooled silent type generator is widely used in occasions that require low noise and quiet environment, such as residential areas, hospitals, schools, conference halls, theaters, etc. It can not only provide stable and reliable power supply, but also reduce noise pollution, protect the environment and people's health.
Air-cooled silent type generator advantage
1)Heavy duty cast iron engine
2)Easy pull recoil start
3)Large muffler ensures quiet operation
4)DC output cable
Option
Electrical start with battery
Wheels transport kit
Auto Transfer systems (ATS) device
Remote Control System
|
Model |
DG3500SE |
DG6500SE |
DG6500SE |
DG7500SE |
DG8500SE |
DG9500SE |
|
Max Output(kW) |
3.0/3.3 |
5/5.5 |
5.5/6 |
6.5 |
6.5/4 |
7.5/7.7 |
|
Rated Output(kW) |
2.8/3 |
4.6/5 |
5/5.5 |
5.5/6 |
6/6.5 |
7/7.2 |
|
Rated AC Voltage(V) |
110/120,220,230,240,120/240,220/380,230/400,240/415 |
|||||
|
Frequency(Hz) |
50/60 |
|||||
|
Engine Speed(rpm) |
3000/3600 |
|||||
|
Power Factor |
1 |
|||||
|
DC Output(V/A) |
12V/8.3A |
|||||
|
Phase |
Single Phase or Three Phase |
|||||
|
Alternator Type |
Self- Excited, 2- Pole, Single Alternator |
|||||
|
Starting System |
Electric |
|||||
|
Noise Level(dB at 7m) |
65-70 dB |
|||||
|
Fuel Tank Capacity (L) |
16 |
|||||
|
Continuous Work(hr) |
13/12.2 |
8.5/7.8 |
8.2/7.5 |
8/7.3 |
7.8/7.4 |
7.5/7.3 |
|
Engine Model |
178F |
186FA |
188FA |
188FA |
192FC |
195F |
|
Engine Type |
Single-Cylinder, Vertical, 4-Stroke Air-Cooled Diesel Engine |
|||||
|
Displacement(cc) |
296 |
418 |
456 |
456 |
498 |
531 |
|
Bore×Stroke(mm) |
78×64 |
86×72 |
88×75 |
88×75 |
92×75 |
95×75 |
|
FuelConsumptionRate(g/kW/h) |
≤295 |
≤280 |
||||
|
Fuel Type |
0# or -10# Light Diesel Oil |
|||||
|
Lubrication Oil Volume(L) |
1.1 |
6.5 |
||||
|
Combustion System |
Direct Injection |
|||||
|
Standard Features |
Voltmeter, AC Output Socket, AC Circuit Breaker, Oil Alert |
|||||
|
Optional Features |
Four Sides Wheels, Digital Meter, ATS, Remote Control |
|||||
|
Dimension(LxWxH)(mm) |
D:950×550×830 S:890x550x820 |
|||||
|
Gross Weight (kg) |
136 |
156 |
156.5 |
157 |
163 |
164 |
|
Model |
DG11000SE |
DG11000SE+ |
DG12000SE |
DG12000SE+ |
|
Max Output (kW) |
8 |
8.5 |
9 |
10 |
|
Rated Output(kW) |
7.5 |
8 |
8.5 |
9.5 |
|
Rated AC Voltage(V) |
110/120,220,230,240,120/240,220/380,230/400,240/415 |
|||
|
Frequency (Hz) |
50 |
|||
|
Engine Speed(rpm) |
3000 |
|||
|
Power Factor |
1 |
|||
|
DC Output (V/A) |
12V/8.3A |
|||
|
Phase |
Single Phase or Three Phase |
|||
|
Alternator Type |
Self- Excited |
|||
|
Starting System |
Electric |
|||
|
Noise Level (dB at 7m) |
70-73 dB |
|||
|
Fuel Tank Capacity(L) |
30 |
|||
|
Continuous Work(hr) |
12 |
|||
|
Engine Model |
1100F |
1103F |
||
|
Engine Type |
Single-Cylinder, Vertical,4-Stroke, Air-Cooled Diesel Engine |
|||
|
Displacement(cc) |
660 |
720 |
||
|
Bore×Stroke(mm) |
100×84 |
103×88 |
||
|
Fuel Consumption rate(g/kW/h) |
≤230 |
|||
|
Fuel Type |
0# or -10# Light Diesel Oil |
|||
|
Lubrication Oil Volume(L) |
2.5 |
|||
|
Combustion System |
Direct Injection |
|||
|
Standard Features |
Voltmeter, AC Output Socket, AC Circuit Breaker, Oil Alert |
|||
|
Optional Features |
Four Sides Wheels, Digital Meter, ATS, Remote Control |
|||
|
Dimension(LxWxH)(mm) |
A:1110×760×920 B:1120×645×920 |
|||
|
Gross Weight (kg) |
A:220 B:218 |
A:222 B:220 |
A:226 B:224 |
A:225 B:223 |
